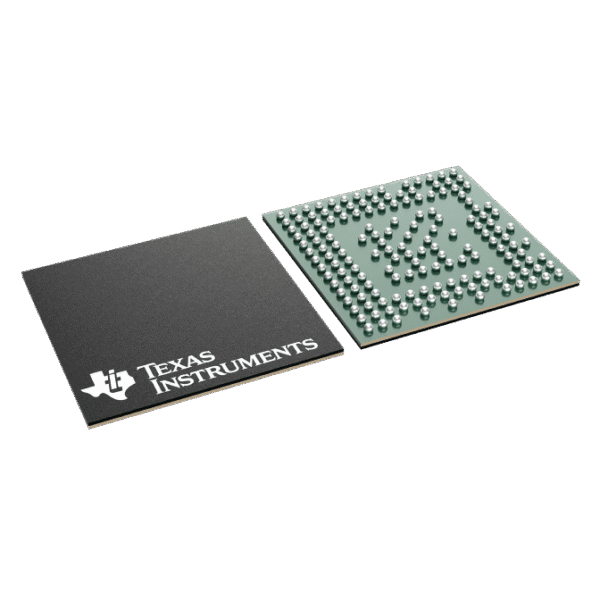

AWR6843AQGABLRQ1

Delivery:

Payment:

Parameter Category	Detailed Specifications
Model Number	AWR6843AQGABLRQ1
Product Series	AWR6843 (Millimeter-Wave Radar Sensor)
Package	10.4mm × 10.4mm FCBGA (Flip Chip Ball Grid Array)
Pin Count	180
Operating Temperature	-40°C to +105°C (Industrial Grade)
Core Architecture	Arm Cortex-R4F @ 200MHz + DSP C674x @ 600MHz
RF Performance	– Frequency Band: 76–81 GHz – Bandwidth: 4 GHz – TX Power: 12 dBm – RX Channels: 4Tx + 4Rx
ADC Resolution	12-bit
Memory	– 1.5MB RAM – 4MB Flash (User-Programmable)
Power Consumption	Typical Values: – Active Mode: ~500mW – Standby Mode: <1mW
Interfaces	– SPI / I2C / UART – CAN-FD – GPIO – MIPI CSI-2 (Video Output)
ADC Sampling Rate	Up to 25 MSPS
Detection Capability	– Max Detection Range: ~200m – Range Resolution: ≤4 cm – Velocity Resolution: ≤0.1 m/s
Applications	Automotive ADAS, Industrial Radar (e.g., Drone Obstacle Avoidance, Traffic Monitoring), Smart Home
Certifications	AEC-Q100 (Automotive Electronics Reliability Certification)
