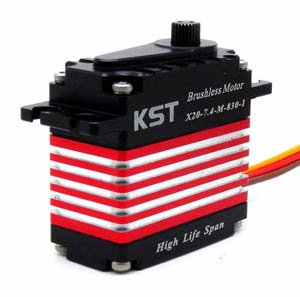

X20-7.4-M-830

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	X20-7.4-M1-830-*	X20-12-M1-830-	X20-24-M1-830-
Rated Voltage	DC7.4V	DC12.0V	DC24.0V
Voltage Range	DC6.0V–8.4V	DC9.0V–13.0V	DC20.0V–28.0V
Stalling Torque	38 Kgf·cm @ 7.4V	45 Kgf·cm @ 12V	60 Kgf·cm @ 24V
Rated Torque	9.0 Kgf·cm @ 7.4V	11 Kgf·cm @ 12V	20 Kgf·cm @ 24V
Stalling Current	4.95 A	3.25 A	5.25 A
Rated Current	1.25 A	0.85 A	1.25 A
No-load Speed	0.13 sec/60° @ 7.4V	0.13 sec/60° @ 12V	0.12 sec/60° @ 24V
Rated Speed	0.22 sec/60° @ 7.4V	0.23 sec/60° @ 12V	0.20 sec/60° @ 24V
Working Frequency	1520µs / 333Hz	1520µs / 333Hz	1520µs / 333Hz
Default Travel Angle	100°–200° (Total when 500µs–2500µs)	Same	Same
Temperature Range	-10°C to +65°C	Same	Same
Case Dimensions	40mm × 20mm × 40mm ±0.2mm	Same	Same
Weight	80g ±10%	Same	Same
Ball Bearing	6 BB	6 BB	6 BB
