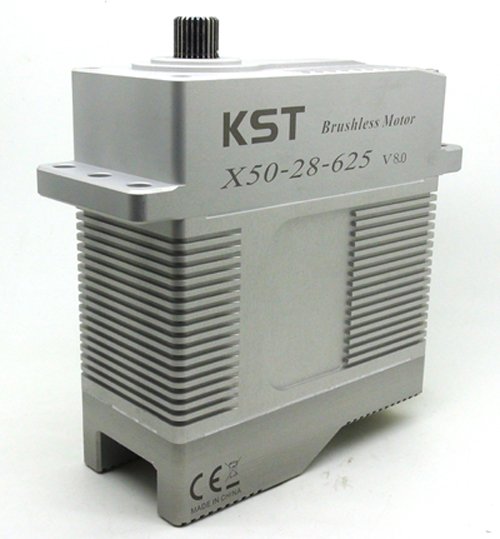

X50-28-625

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	Value
Rated Voltage	DC 28V
Voltage Range	DC 24V – 32V
Stalling Torque	62.5 N·m @ 28V
Rated Torque	20 N·m @ 28V
Stalling Current	10.0 A
Rated Current	2.20 A
No-load Speed	0.36 sec/60° @ 28V
Rated Speed	0.50 sec/60° @ 28V (corrected from “”)
Working Frequency	1520 µs / 333 Hz
Default Travel Angle	+50° to +100° (Total, PWM 1000–2000 µs)
Operating Temperature Range	-10°C to +65°C
Case Dimensions	104 mm × 48 mm × 120 mm ±0.2 mm
Weight	1200 g ±10%
