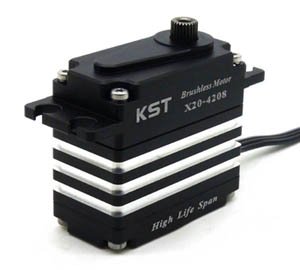

X20-4208

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Item	Specification
Rated Voltage	DC7.4V
Operating Voltage Range	DC6.0V – 8.4V
Torque	38 Kg·cm @ 6.0V42 Kg·cm @ 7.4V46 Kg·cm @ 8.4V
Speed	0.10 sec/60° @ 6.0V0.08 sec/60° @ 7.4V0.07 sec/60° @ 8.4V
Working Frequency	1520μs / 333Hz
Default Travel Angle	±60° = 120° Total
Operating Temperature	-20°C to +65°C
Motor Type	4-Pole Brushless DC Motor
Ball Bearing	6BB
Case Dimensions	40 × 20 × 40mm ±0.2mm
Weight	80g ±10%
