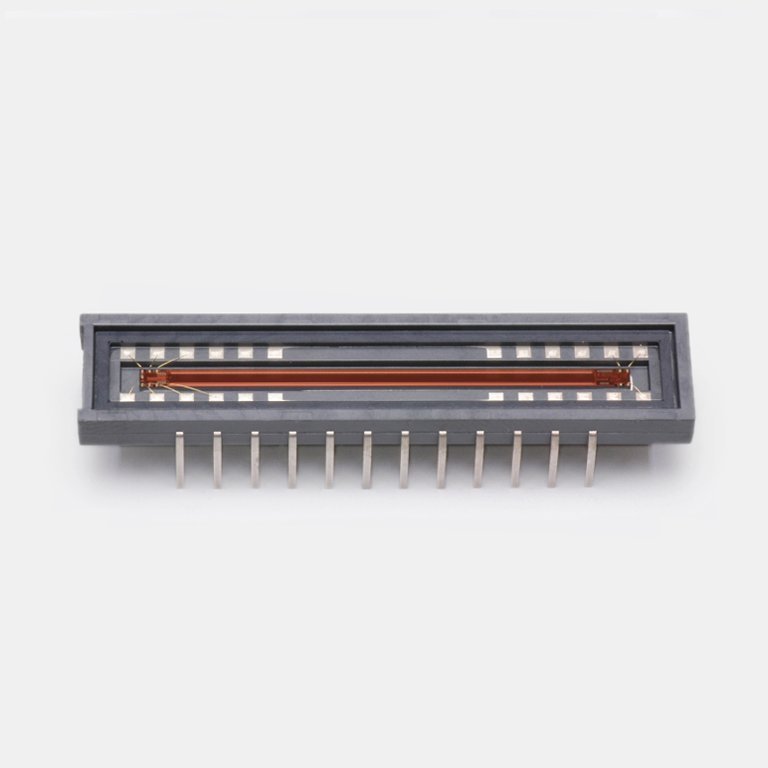

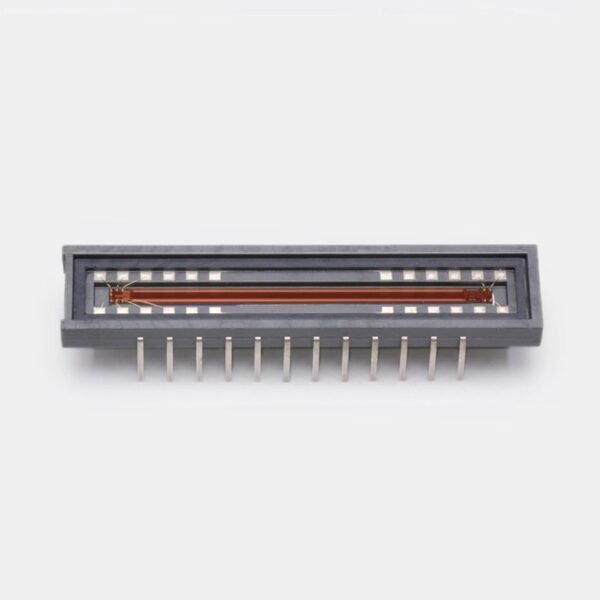

S13496

The S13496 is a high-sensitivity, 1024-element silicon photodiode array designed for precision optical measurement applications. Featuring Hamamatsu’s advanced semiconductor technology, this array delivers excellent linearity and low-noise performance for demanding spectroscopic and analytical applications.

Delivery:

Payment:

Parameter	Specification	Unit
Model Number	S13496	–
Device Type	Silicon Photodiode Array	–
Number of Elements	1024	–
Element Size	25 × 500	μm²
Element Pitch	25	μm
Active Area	25.6 × 0.5	mm²
Spectral Range	200-1000	nm
Peak Sensitivity	700	nm
Responsivity	0.35 @ 700nm	A/W
Dark Current	≤0.5	pA
Rise Time	1	μs
Capacitance	5	pF/element
Breakdown Voltage	50	V
Operating Voltage	5-45	V
Package Type	32-pin ceramic DIP	–
Dimensions	35.0 × 12.0 × 5.0	mm
Weight	5	g
