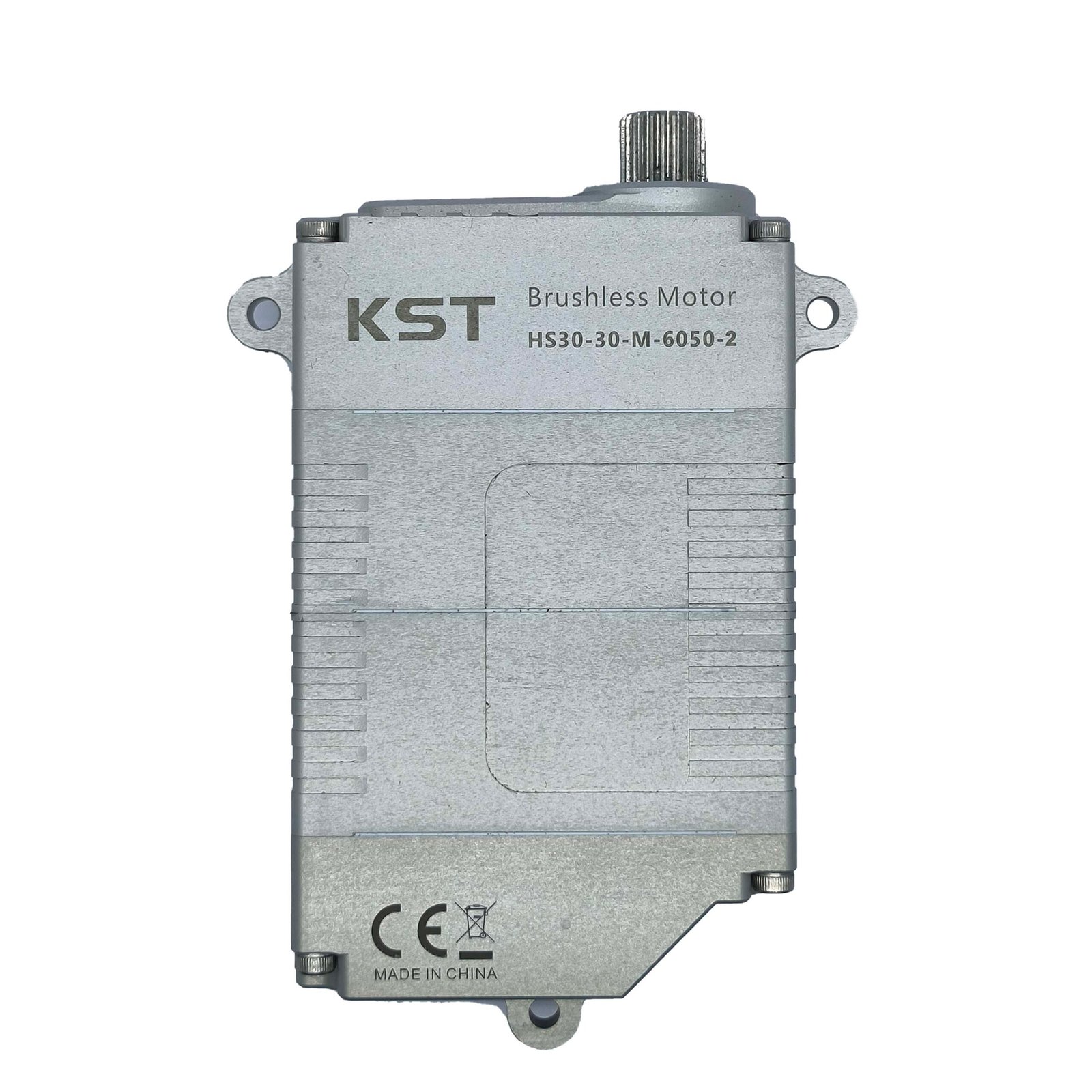

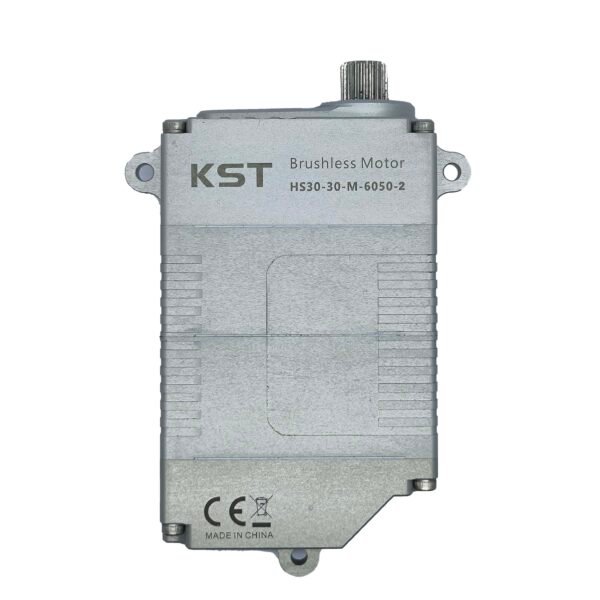

HS30-30-M-6050-X

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	Value
Rated Voltage	DC 30V
Voltage Range	DC 24V – 32V
Stalling Torque	180 Kgf·cm @ 30V
Rated Torque	90 Kgf·cm @ 30V
Stalling Current	3.00 A
Rated Current	1.40 A
No-load Speed	240°/s @ 30V, 25°C
Rated Speed	160°/s @ 30V, 25°C
Default Travel Angle	±100° = 200° total travel
Operating Temperature Range	-30°C to +65°C
Case Material	Aluminum Alloy 7075
Motor Type	Brushless DC Motor
Gear Set Material	Hardened Steel
Position Sensor	Contactless
Shielded Connecting Cable	J30J-9TJL / 1500mm
Ball Bearing	6 BB
