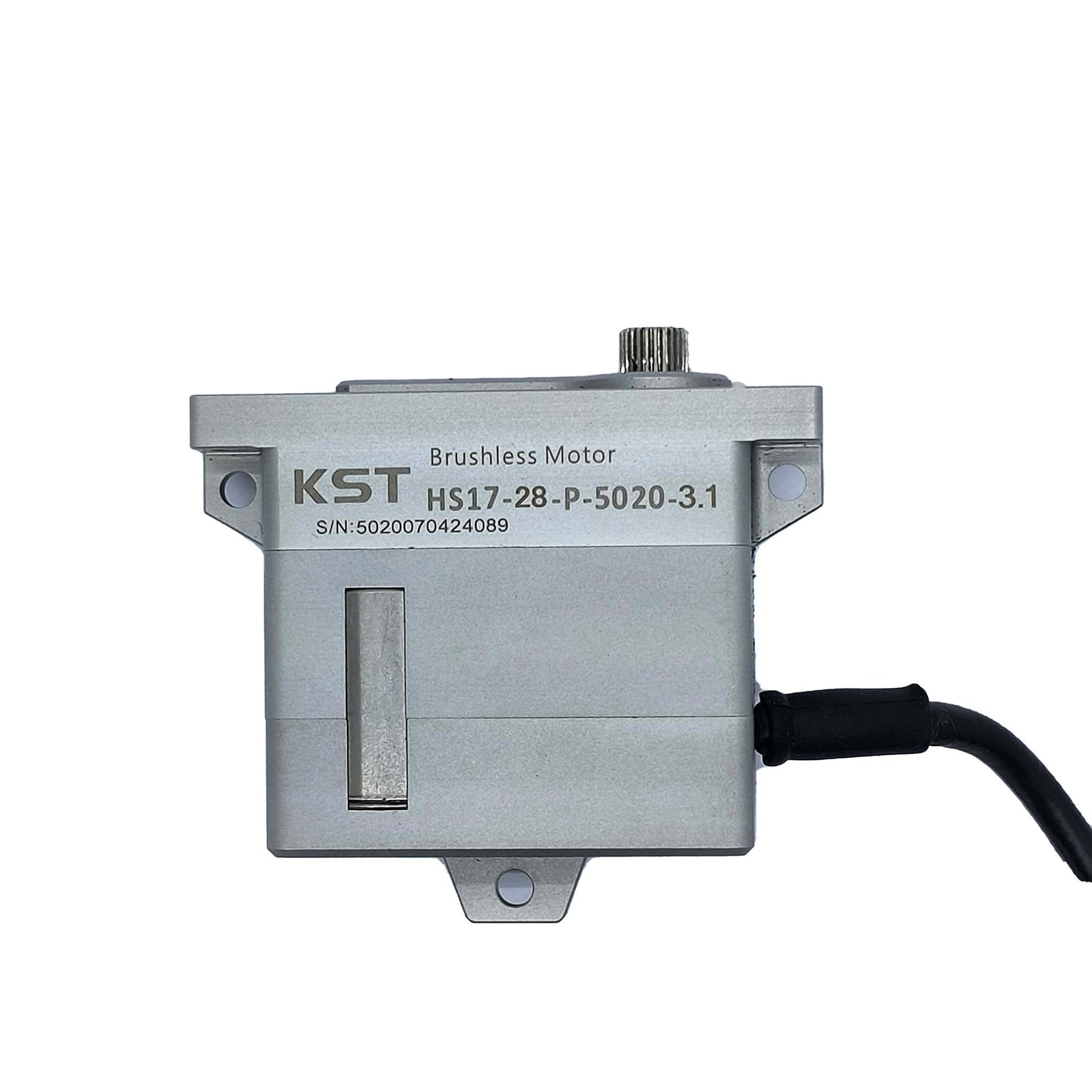

HS17-P-5020

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	HS17-12-P-5020-*	HS17-28-P-5020-*
Rated Voltage	DC 12.0V	DC 28.0V
Voltage Range	DC 9.0V – 13.0V	DC 24.0V – 30.0V
Stalling Torque	60 Kgf·cm @ 12V	80 Kgf·cm @ 28V (corrected garbled)
Rated Torque	18 Kgf·cm @ 12V	25 Kgf·cm @ 28V
Stalling Current	6.45 A (corrected)	4.65 A
Rated Current	1.55 A	1.05 A
No-load Speed	0.12 sec/60° @ 12V	0.12 sec/60° @ 28V
Rated Speed	0.20 sec/60° @ 12V	0.20 sec/60° @ 28V
Working Frequency	1520 µs / 333 Hz	1520 µs / 333 Hz
Default Travel Angle	+50° = 100° Total	+50° = 100° Total
Temperature Range	-30°C to +65°C	-30°C to +65°C
Case Material	Aluminum Alloy	Aluminum Alloy
Motor Type	4 Pole Brushless DC Motor	4 Pole Brushless DC Motor
Gear Set Material	Hardened Steel	Hardened Steel
Position Sensor	Potentiometer (corrected)	Potentiometer (corrected)
Ball Bearing	2 BB	2 BB
Case Dimensions	40.5 mm × 17 mm × 40 mm ±0.2 mm	Same
Weight	75 g ±10%	Same
