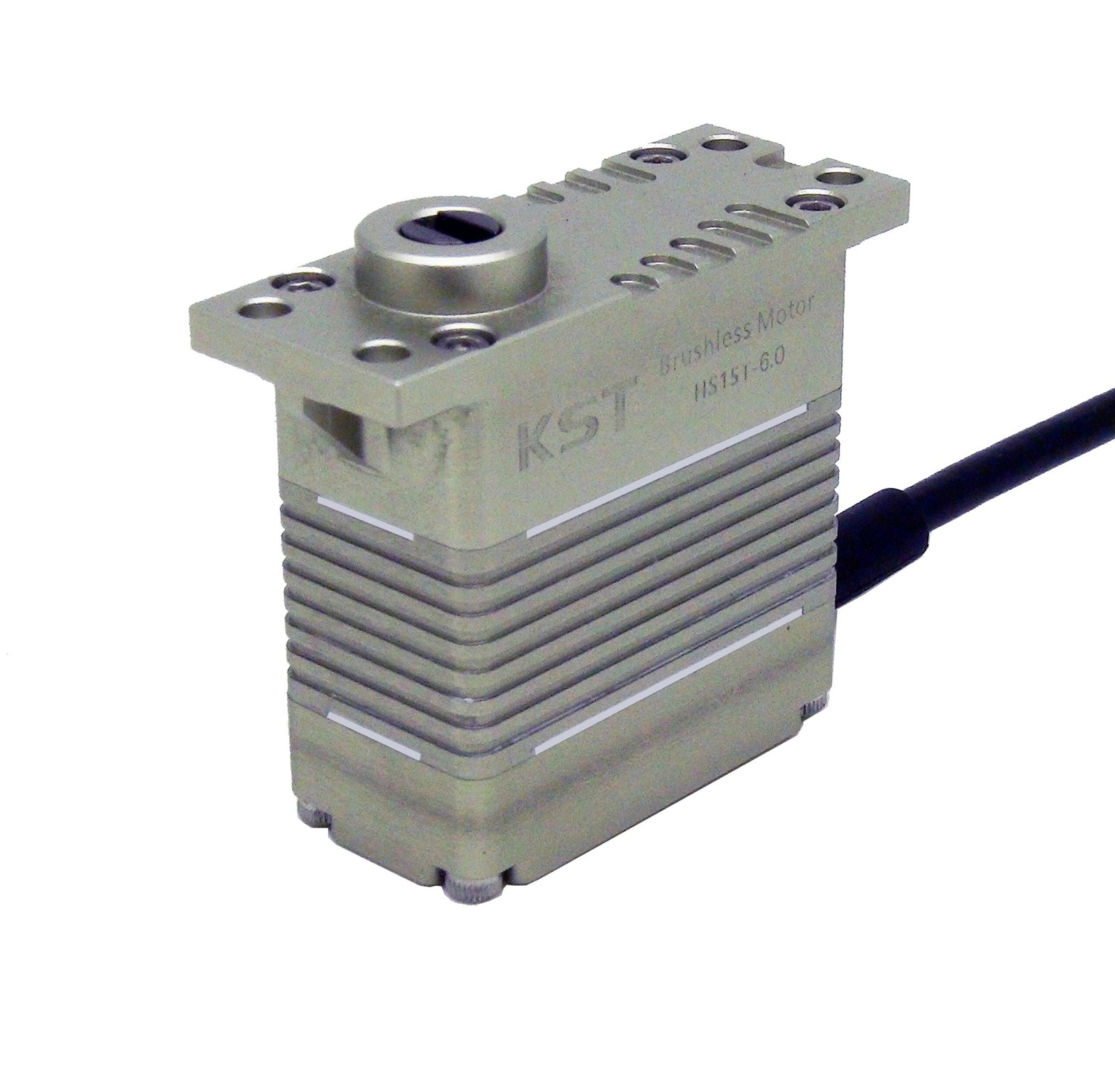

HS15T-6.0

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	HS15T-6.0	HS15T-12
Rated Voltage	DC 6.0V	DC 12V
Voltage Range	DC 6V – 9V	DC 9V – 12V
Stalling Torque	1.6 Kgf·cm @ 6V	2.5 Kgf·cm @ 12V
Rated Torque	6.0 Kgf·cm @ 6V	10 Kgf·cm @ 12V
Stalling Current	1.60 A	1.00 A
Rated Current	0.85 A (corrected from garbled)	0.30 A
No-load Speed	300 °/s @ 6.0V	480 °/s @ 12V
Rated Speed	240 °/s @ 6.0V	320 °/s @ 12V
Default Travel Angle	+45° to +90° total travel	+45° to +90° total travel
Working Frequency	1520 µs / 333 Hz	Same
Operating Temperature Range	-30°C to +65°C	Same
Case Material	Aluminum Alloy	Aluminum Alloy
Motor Type	Brushless DC Motor	Brushless DC Motor
Gear Set Material	Hardened Steel	Hardened Steel
Position Sensor	Contactless	Contactless
Ball Bearing	2 BB	2 BB
Case Dimensions	30 mm × 15 mm × 38 mm ± 0.2 mm	Same
Weight	40 g ± 10%	Same
