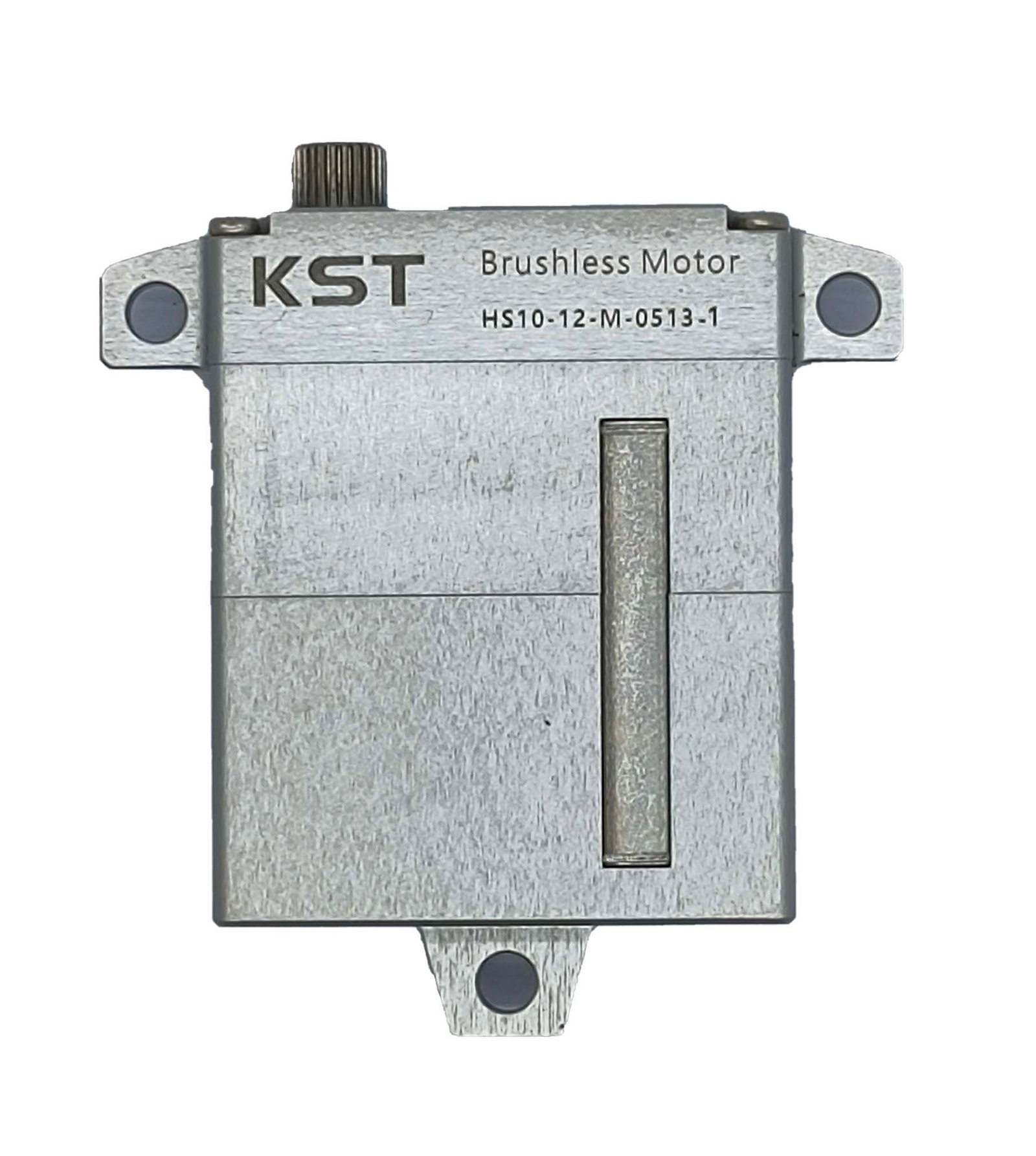

HS10-12-M-0513-X

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Specification	Value
Rated Voltage	DC 12.0V
Voltage Range	DC 9.0V – 13.0V
Stalling Torque	16.0 Kgf·cm @ 12.0V
Rated Torque	5.0 Kgf·cm @ 12.0V
Stalling Current	4.05 A
Rated Current	0.95 A
No-load Speed	600 °/s @ 25°C
Rated Speed	460 °/s @ 25°C
Default Travel Angle	+100° to +200° total travel
Operating Temperature Range	-30°C to +65°C
Case Material	Aluminum Alloy 7075
Motor Type	4 Pole Brushless DC Motor
Gear Set Material	Hardened Steel
Position Sensor	Contactless Sensor
Ball Bearing	2 BB
Case Dimensions	30 mm × 9.8 mm × 37 mm ± 0.2 mm
Weight	28 g ± 10%
