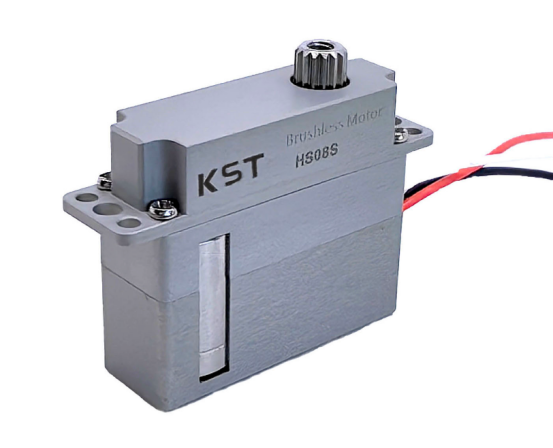

| Specification | Value |
|---|---|
| Rated Voltage | DC 6.0V |
| Voltage Range | DC 6.0V – 8.4V |
| Stalling Torque | 4.0 Kgf·cm @ 6.0V 5.0 Kgf·cm @ 7.4V 6.0 Kgf·cm @ 8.4V |
| Rated Torque | 1.00 Kgf·cm @ 6.0V 1.25 Kgf·cm @ 7.4V 1.50 Kgf·cm @ 8.4V |
| Stalling Current | 1.05 A @ 6.0V 1.25 A @ 7.4V 1.35 A @ 8.4V |
| Rated Current | 0.20 A @ 6.0V 0.25 A @ 7.4V 0.30 A @ 8.4V |
| No-load Speed | 0.090 sec/60° @ 6.0V 0.072 sec/60° @ 7.4V 0.065 sec/60° @ 8.4V |
| Rated Speed | 0.13 sec/60° @ 6.0V 0.10 sec/60° @ 7.4V 0.09 sec/60° @ 8.4V |
| Working Frequency | 1500 µs / 20 kHz |
| Default Travel Angle | +50° to +100° (Total travel with PWM 1000–2000 µs) |
| Operating Temperature Range | -30°C to +65°C |
| Case Material | Aluminum Alloy |
| Motor Type | Brushless DC Motor |
| Gear Set Material | Hardened Steel |
