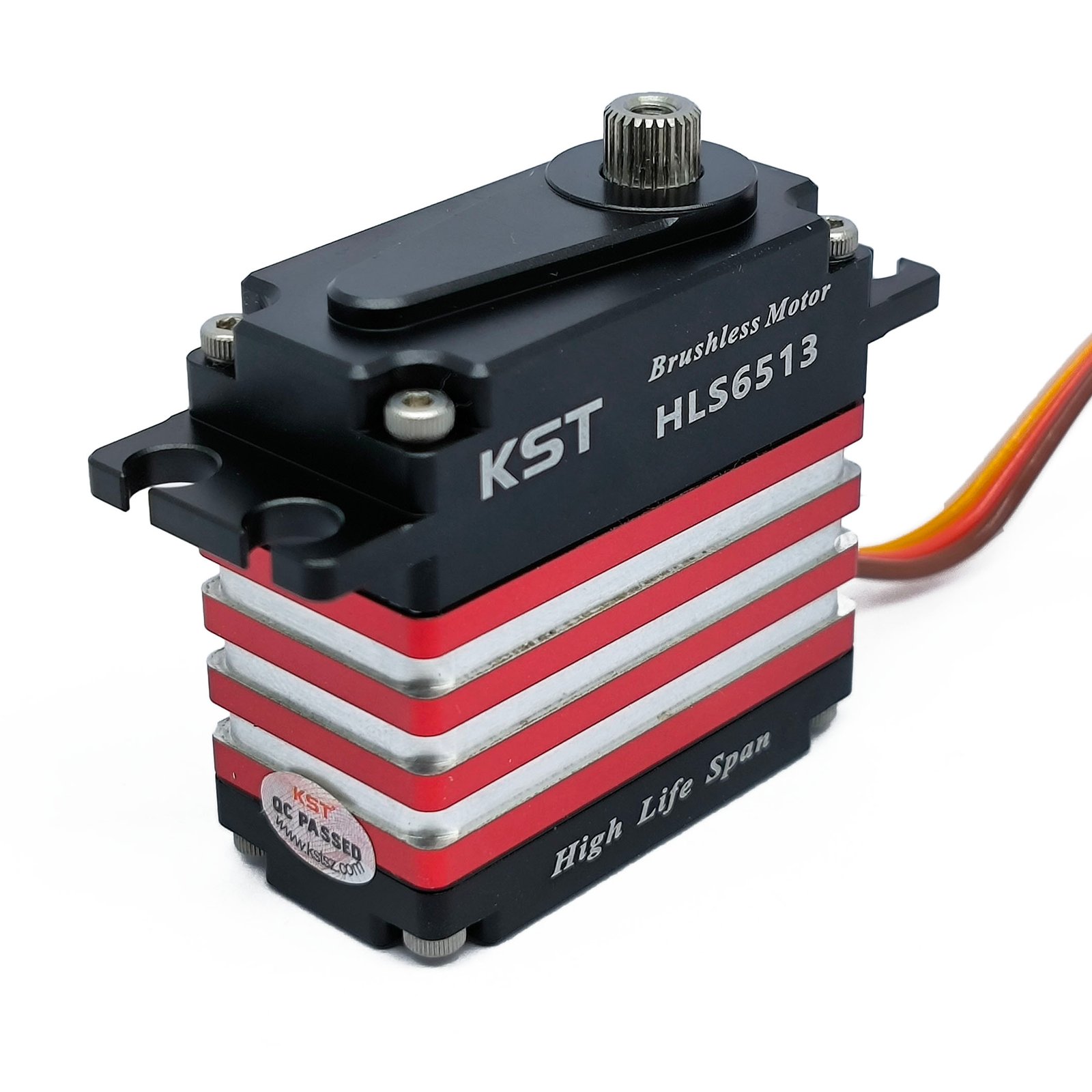

HLS6513

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Item	Specification
Rated Voltage	DC7.40V
Operating Voltage Range	DC6.00V – 8.40V
Stalling Torque	55.0 kgf·cm @ 6.00V65.0 kgf·cm @ 7.40V70.0 kgf·cm @ 8.40V
No-load Speed	0.16 sec/60° @ 6.00V0.13 sec/60° @ 7.40V0.11 sec/60° @ 8.40V
Working Frequency	1520μs / 333Hz
Default Travel Angle	±100° = 200° Total Travel
Operating Temperature	-10°C to +65°C
Soft Start	Yes
Programmable	Yes
Case Material	Aluminum Alloy
Motor Type	4-Pole Brushless Motor
Gear Set Material	Hardened Steel
Position Sensor	Contactless
Ball Bearing	6BB
Case Dimensions	40 × 20 × 40mm ±0.2mm
Weight	75g ±10%
