DS90UB635TRHBRQ1
| Category | Specifications |
|---|---|
| Part Number | DS90UB635TRHBRQ1 (Automotive Grade) |
| Description | FPD-Link III Serializer supporting high-speed video data transmission |
| Data Rate | Up to 3.12 Gbps/lane (Supports 4K resolution) |
| Interface | – Input: MIPI CSI-2/DVP – Output: FPD-Link III (coaxial or twisted pair) |
| Channel Count | 1 differential serial channel (with bidirectional control channel) |
| Supply Voltage | 1.8V & 3.3V dual power supply |
| Operating Temp | -40°C to +105°C (AEC-Q100 compliant) |

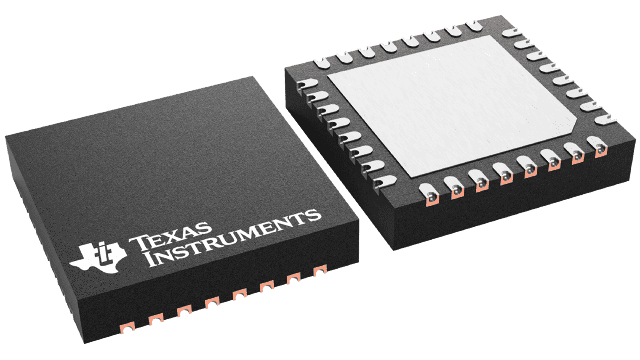

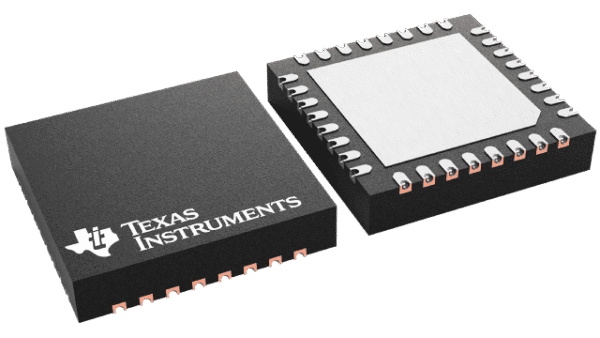

| Package | 40-pin VQFN (5mm × 5mm) |
| Applications | Automotive cameras, ADAS, surround-view systems, medical imaging equipment |
