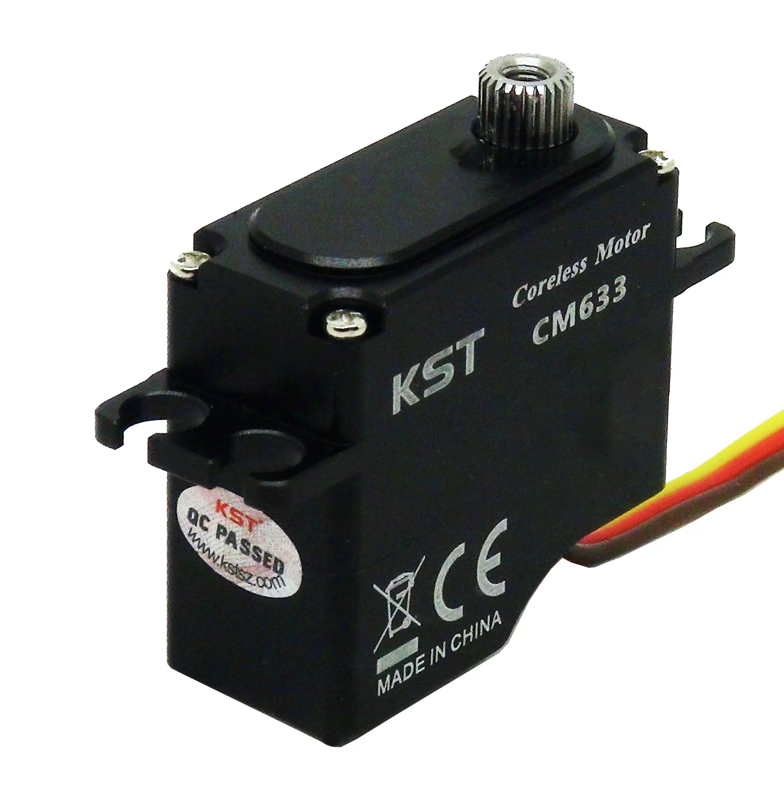

CM633

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Category	Specification
Rated Voltage	DC7.4V
Voltage Range	DC4.8V – 8.4V
Torque	9.00 kgf·cm @ 4.8V
	11.0 kgf·cm @ 6.0V
	13.8 kgf·cm @ 7.4V
	15.0 kgf·cm @ 8.4V
Speed	0.14 sec/60° @ 4.8V
	0.11 sec/60° @ 6.0V
	0.09 sec/60° @ 7.4V
	0.08 sec/60° @ 8.4V
Starting Current	1.85A @ 4.8V
	2.65A @ 6.0V
	2.95A @ 7.4V
	3.25A @ 8.4V
Working Frequency	1520μs / 333Hz
Travel Angle	±50° (Total 100°)
Operating Temperature	-10°C to +65°C
Soft Start	Programmable
Programmable	Yes
Case Material	Aluminum Alloy
Motor Type	Coreless DC Motor
Gear Set Material	Metal Gear
Position Sensor	Potentiometer
Ball Bearing	2BB
Case Dimensions	33mm × 15mm × 30mm ±0.2mm
Weight	35g ±10%
