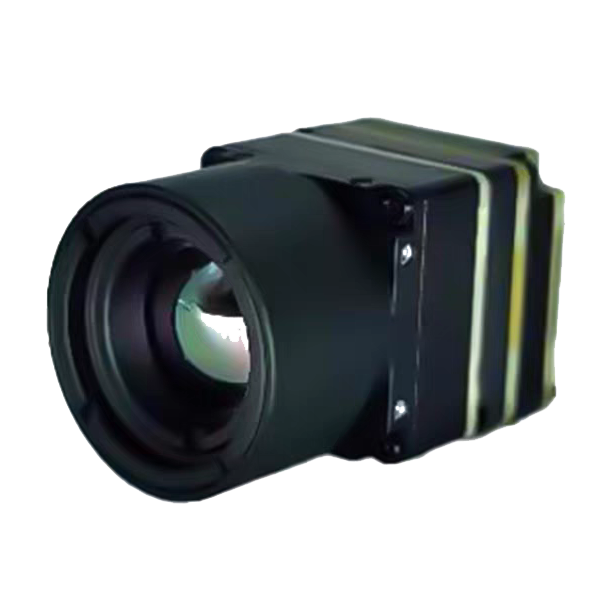

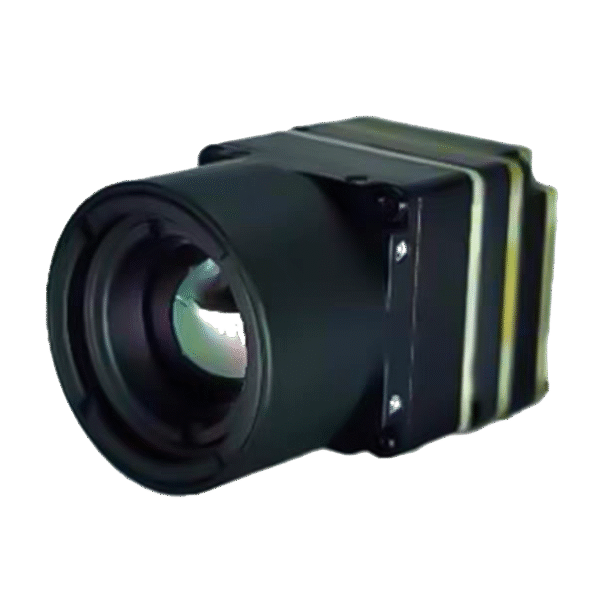

CIS-39S-P 384×288 Infrared Thermal Imaging AI Camera

CIS-39S-P is a high-performance, small-sized 384×288 uncooled thermal
imaging camera with a built-in intelligent SOC, integrated with self-developed
advanced AI super-resolution algorithms, enabling high frame rate and low latency
imaging.

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Parameter	Value
Detector Type	1920 × 1080
Digital Video Output	USB / BT.656
Resolution	25Hz, 50Hz
Analog Video Output	CVBS (PAL: 720 × 576)
Frame Rate	1024 × 768
Communication Interface	URAT
Response Wavelength Range	8 – 14 μm
Power Supply Range	DC 4.5 – 5V
NEDT	≤ 40 mK @ 25℃, F#1.0
Typical Power Consumption	＜ 0.8W @ 25Hz
Startup Time	＜ 5 seconds
Dimensions	≤ 20 × 20 × 25 mm
Polarity	White Hot (default) / Black Hot / Pseudo-color
Weight	＜ 10 g
Crosshair	Display / Blank (default) / Move
Operating Temperature	-40℃ ~ +65℃
Image Processing	Filtering and Noise Reduction, DDE, Mirror (Up/Down/Left/Right)
Lens Options	9.1mm (28°H × 21°V), 5.0mm (49°H × 38°V), 4.6mm (53°H × 41°V)
Standard Lens	9.1mm
