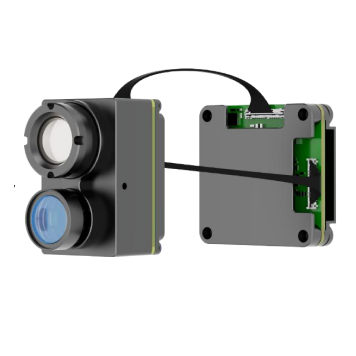

CFS-91-P FPV Visible-Thermal Fusion Camera

FPV Visible-Thermal Fusion Camera is a dual-optical thermal imaging fusion
camera module specifically designed for drones, integrating visible light, infrared
thermal imaging, and dual-optical fusion imaging into one. It features motion anti-
shake and all-weather imaging capabilities. When equipped with this module, drones
can detect pedestrian and vehicle targets within 10~200 meters. It is suitable for
products such as FPV racing drones, small drones, and drone optoelectronic pods.

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Parameter	Specification
Visible Light Resolution	1920 × 1080 @ 50Hz
Thermal Imaging Resolution	720 × 576 @ 25Hz
Visible Light Field of View	130° H × 109° V
Thermal Imaging Field of View	35° H × 28° V
Low Light Sensitivity	0.01 Lux
NEDT (Thermal Sensitivity)	< 40 mK
Visible + IR Module Size	36.0 mm × 22.4 mm × 26.5 mm
AI Image Processing Display Modes	Single visible light, Single infrared, Picture-in-picture, Dual-optical fusion
AI Processing Module Size	36.0 mm × 36.0 mm × 9.2 mm
Video Output	720 × 576 CVBS Analog video
External Interfaces	CVBS, URAT, USB 2.0
Power Supply	5 – 25V
