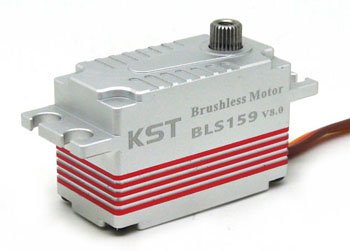

BLS159v8.0

Delivery:

Payment:

Means of Payment

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and wire transfer.

RFQ (Request for Quotations)

It is recommended to request for quotations to get the latest prices and inventories about the part.
Our sales will reply to your request by email within 24 hours.

IMPORTANT NOTICE

1. You’ll receive an order information email in your inbox. (Please remember to check the spam folder if you didn’t hear from us).
2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Category	Specification
Rated Voltage	DC7.4V
Voltage Range	DC6.0V – 8.4V
Stalling Torque	1.5 N·m @ 7.4V
Rated Torque	0.4 N·m @ 7.4V
Stalling Current	3.85 A
Rated Current	0.65 A
No-load Speed	0.11 sec/60° @ 7.4V
Rated Speed	0.15 sec/60° @ 7.4V
Working Frequency	1520µs / 333Hz (corrected from “H2”)
Temperature Range	-20℃ to +65℃
Case Dimensions	40mm × 20mm × 26.5mm ± 0.2mm
Weight	55g ± 10%
